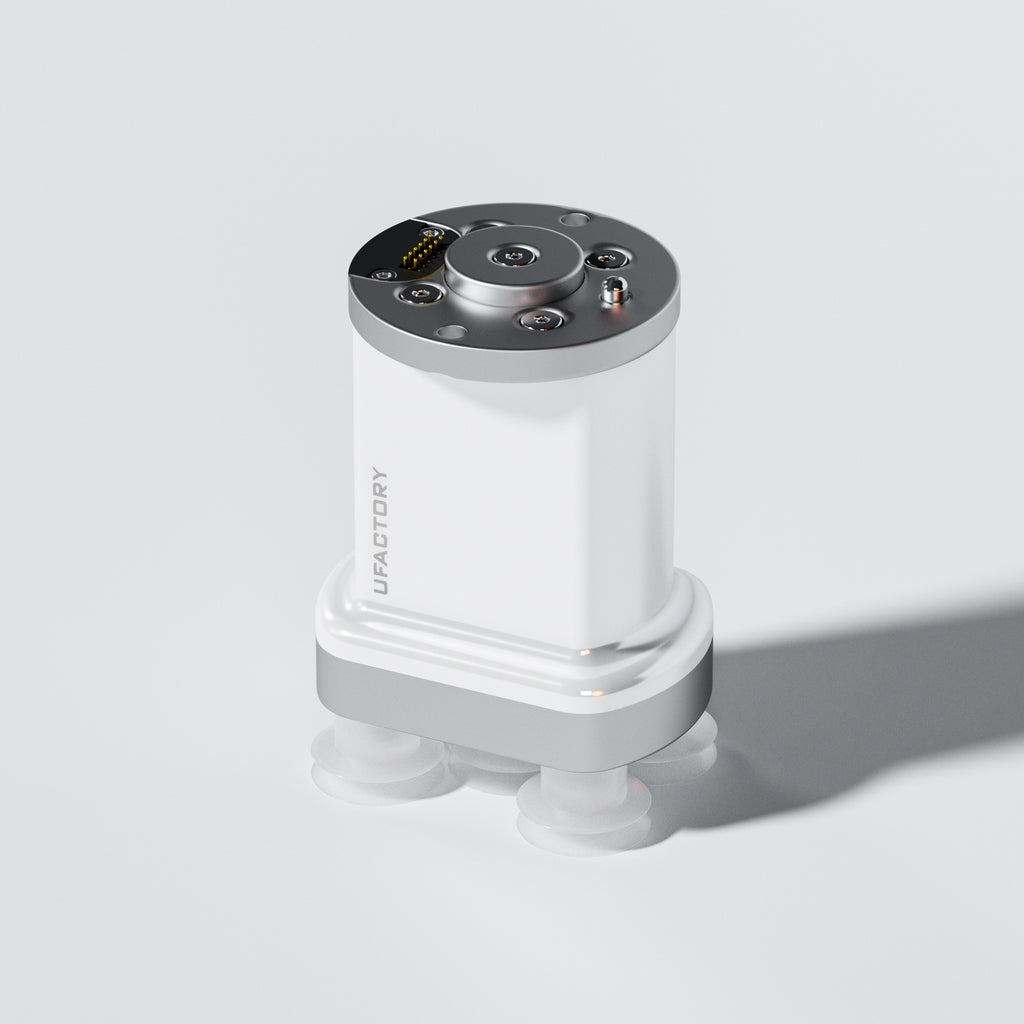

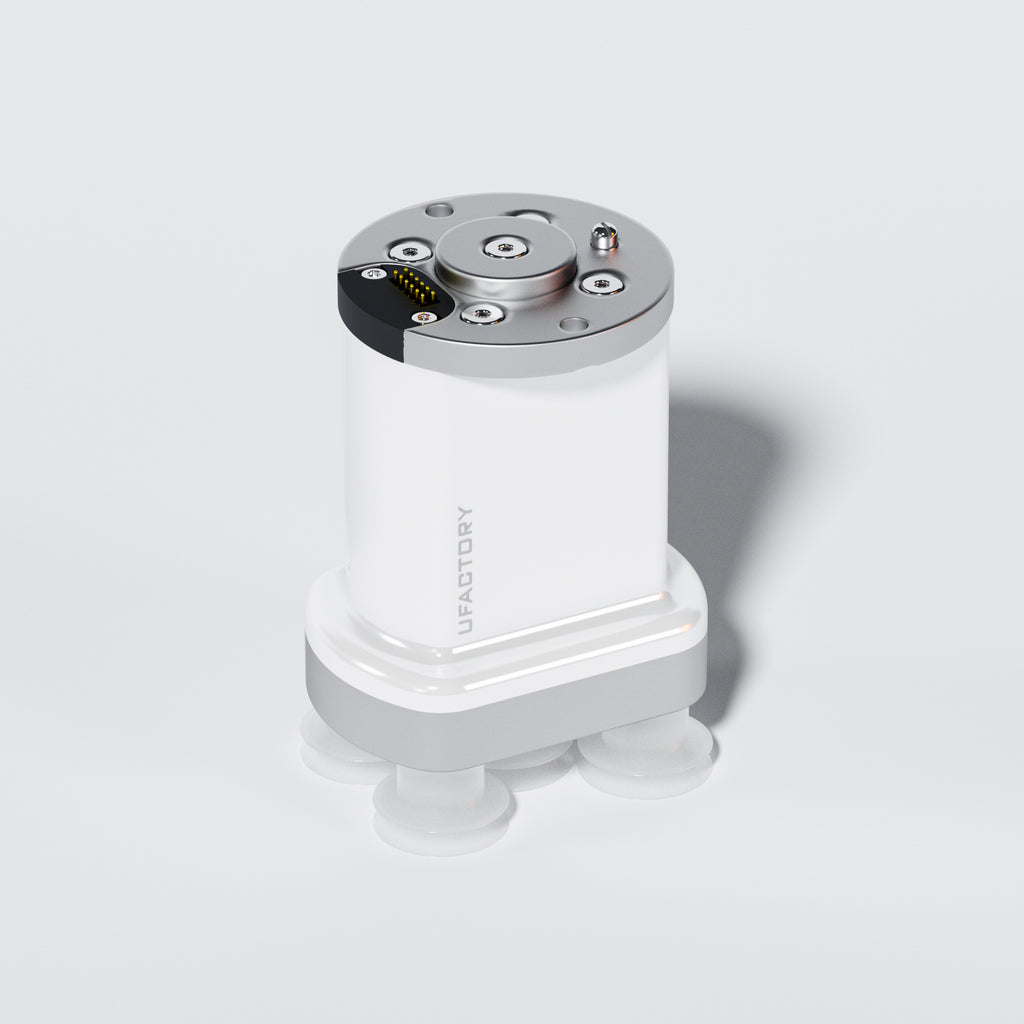

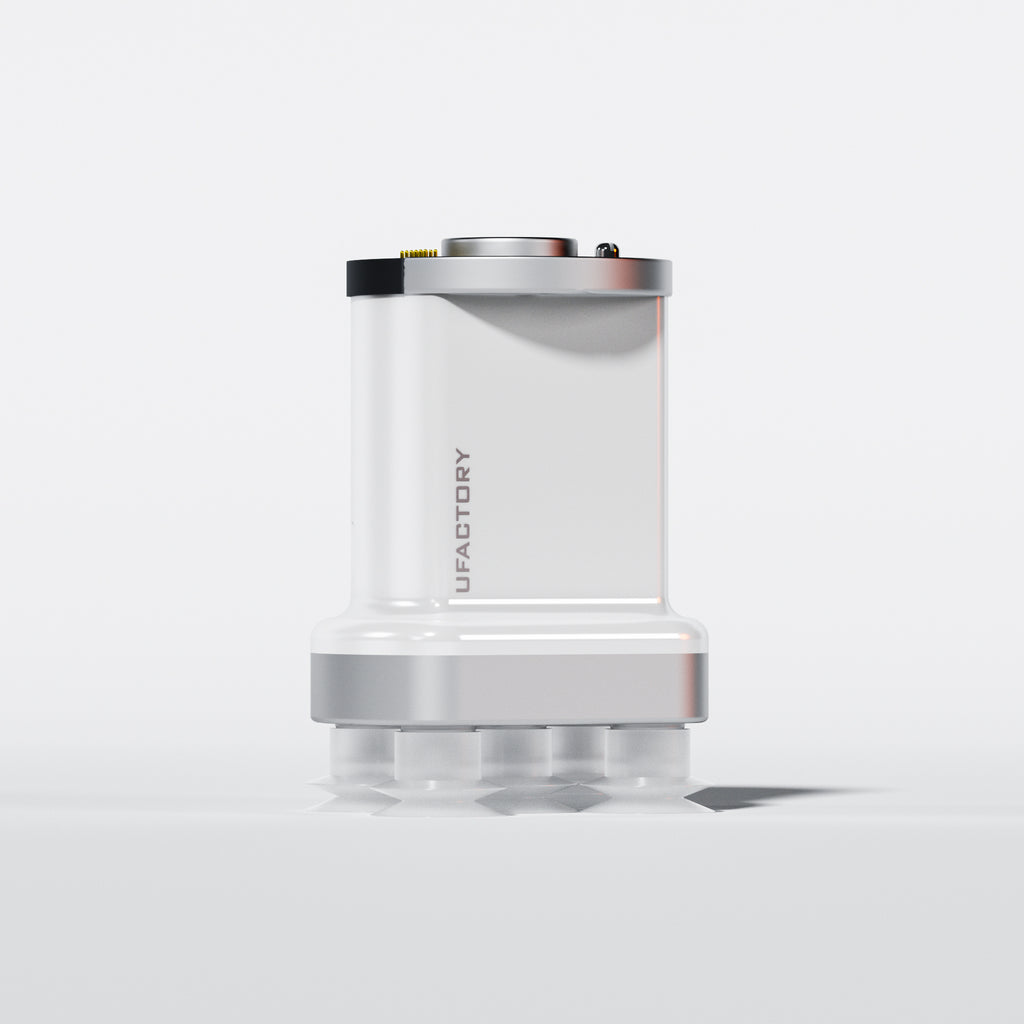

UFACTORY Vacuum Gripper

Vacuum Gripper

$519.00
Skip to product information
UFACTORY Vacuum Gripper
1/3
  • UFACTORY Vacuum Gripper
  • UFACTORY Vacuum Gripper
  • UFACTORY Vacuum Gripper
Vacuum Gripper

Vacuum Gripper

Ideal for gentle pick-and-place of flat, non-porous items such as glass, sheet metal, and smooth plastic, with enough airflow to handle lightly textured or semi-porous surfaces like thin cardboard.

Key Specifications

16 mm
Stroke
610 g
Weight
0.55 s
Grip cycle time
Non-porous
Material compatibility
GOOD TO KNOW

Lead time: 2–4 weeks

Certifications: CE

Warranty: Every unit comes with a 1-year warranty and lifetime technical support.

Payment: We accept PayPal at checkout. For alternative payment methods, email us at sales@ufactory.cc.

Trade terms: All orders ship EXW. Import duties, taxes, and customs clearance are the buyer's responsibility.
$519.00

Compatible Cobots

UFACTORY 850

UFACTORY 850

UFACTORY 850
$8,999.00

Key Features

1
Configurable Suction Cups
Adjust the suction cup arrangement to handle objects of different sizes and shapes.
2
Built-In Electric Vacuum Pump
Requires no external air supply, simplifying installation and reducing maintenance costs.
3
Real-Time Status Feedback
Grip and release confirmation, together with error alerts, helps improve process reliability and reduce handling failures.
4
Automatic TCP and Payload Calculation
Reduces manual setup and simplifies robot programming.
5
Intuitive GUI Control
Set up and control the gripper in minutes through an easy-to-use graphical interface.

UFACTORY Vacuum Grippers Comparison

Parameter UFACTORY Vacuum GripperVacuum Gripper UFACTORY Vacuum Gripper LiteVacuum Gripper Lite
Cobot compatibilityxArm Series, 850Lite 6
Input / rated supply voltage24 VDC, 500 mA max.24 VDC, 500 mA max.
Absolute maximum supply voltage28 VDC26 VDC
Static power consumption0.5 W0.5 W
Vacuum level / maximum negative pressure-55 kPa-40 kPa
Air flow> 4 L/min≤ 1.5 L/min
Weight610 g250 g
Dimensions (L x W x H)122.5 x 91.6 x 75 mm79 x 78 x 55 mm
Payload≤ 5 kg≤ 1 kg
Noise level<65 dB at 30 cm<60 dB at 30 cm
CommunicationDigital I/ODigital I/O
Status indicatorPower, working statusN/A
FeedbackPick/release detectionPick/release detection
Lifespan>6,000 h>6,000 h
Operating environment0 to 50 °C, IP400 to 50 °C, IP40

Frequently Asked Questions

Where can I find the manuals and documentation?

All manuals and 3D models are available on our official website and kept up to date there: UFACTORY Downloads. Developers can find SDKs, API documentation, and ROS packages on our GitHub. If you need any help, contact us at sales@ufactory.cc.
What warranty and return options do you offer?

Every product comes with a 1-year warranty covering manufacturing defects, plus lifetime technical support from our engineering team. See our Warranty & Return Policy for coverage details and return conditions.
When will I get my order?

Once your order is placed, we'll reach out to confirm the lead time for your robot. If you'd like to check availability before ordering, email us at sales@ufactory.cc. We'll get back to you within one business day. Delivery time depends on your location. You'll receive a tracking number by email as soon as your order ships. See our Shipping Policy for full terms.
Where are you located?

UFACTORY is headquartered in Shenzhen, China, with a US office in New York. US orders ship from New York; all other orders ship from our Shenzhen facility. For any inquiries, email us at sales@ufactory.cc and we'll get back to you within one business day.
How much does shipping cost?

Shipping is calculated by destination and product weight, just enter your address at checkout to see the exact rate. Have other questions? Email us at sales@ufactory.cc. We'll get back to you within one business day.
Can you issue an invoice?

Yes. Email us at sales@ufactory.cc with your order number and we'll send one over.
