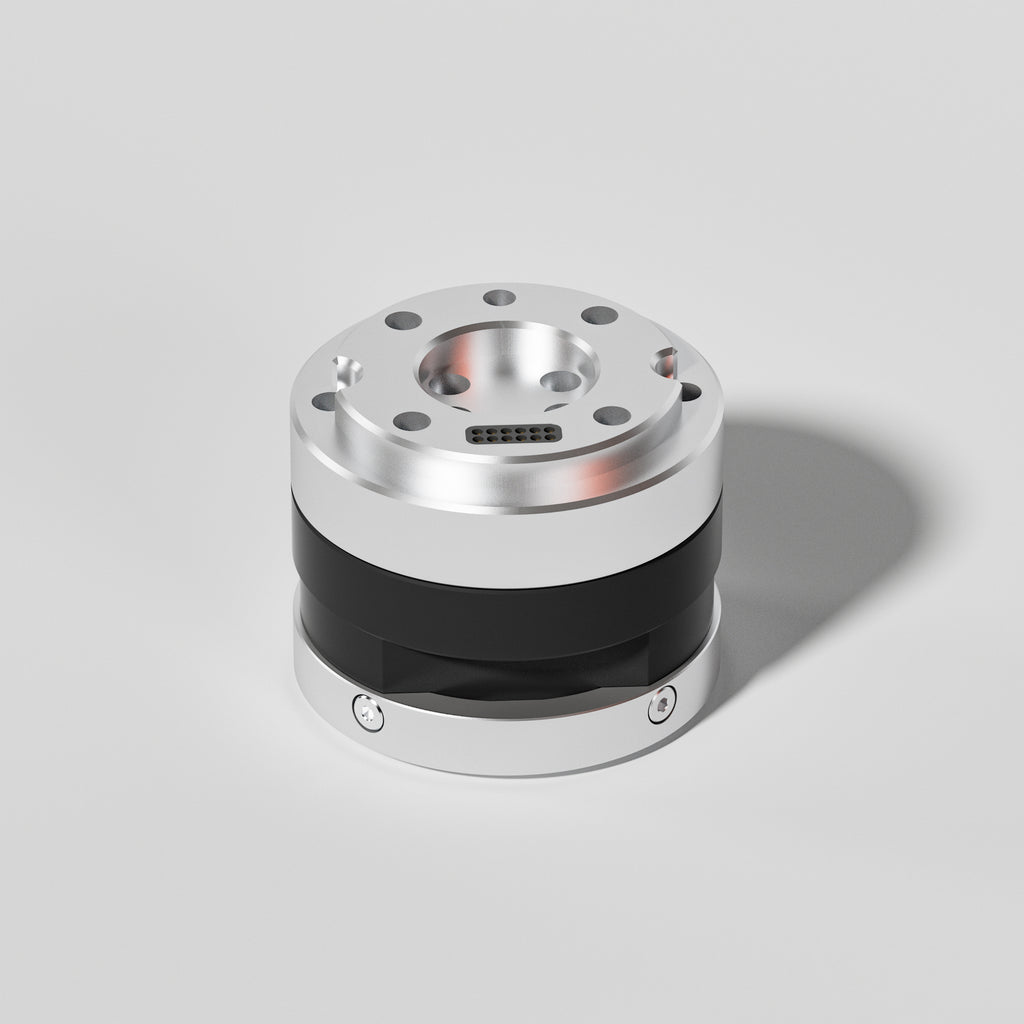

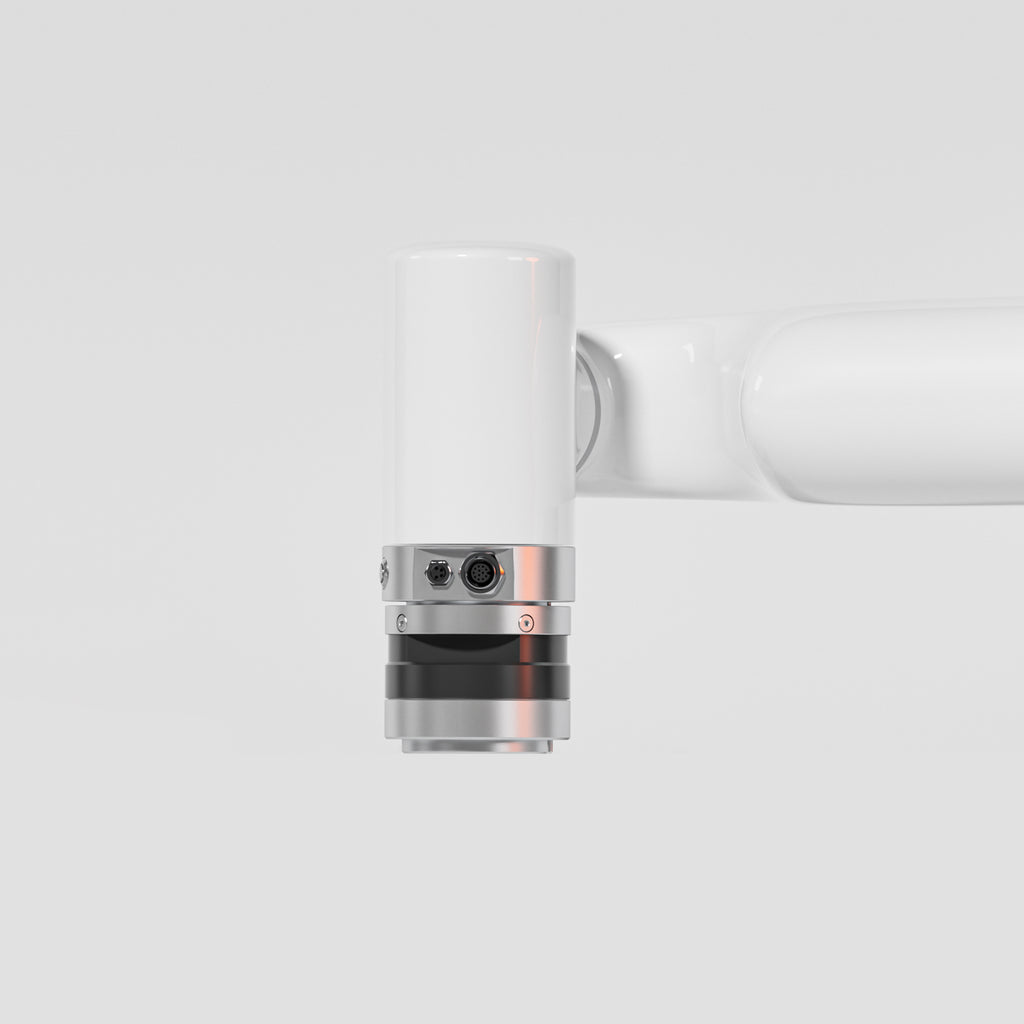

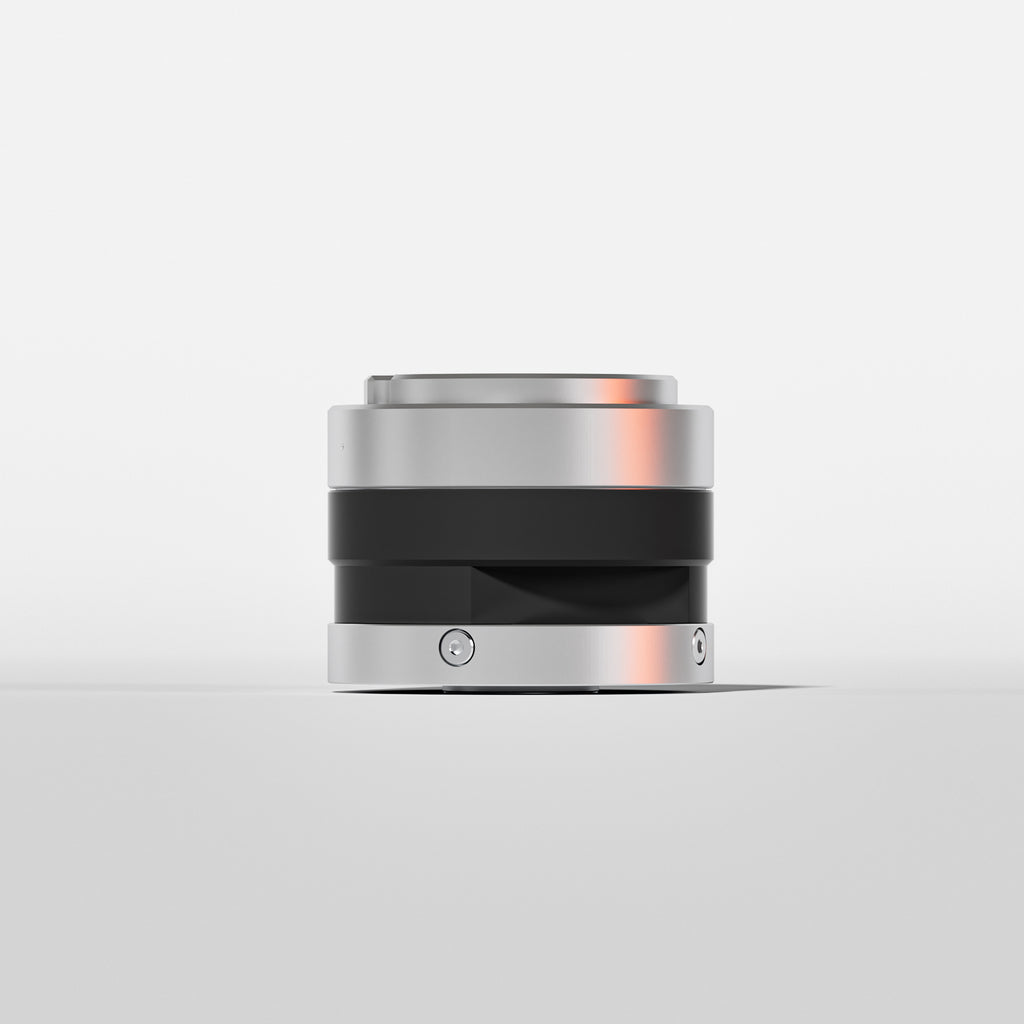

6-Axis F/T Sensor

Name: 6-Axis F/T Sensor
Brand: store.ufactory.cc
Price: 3000.00 USD
Availability: InStock

Provides real-time measurement of forces and torques along all six axes (Fx, Fy, Fz, Tx, Ty, and Tz). Its compact design makes it easy to integrate into robotic systems for precision assembly, surface finishing, and human–robot collaboration.

Key Specifications

200 Hz

Data Rate

up to 200 N

Measuring Range

up to 300%

Overload Capacity

0.455 kg

Tooling Weight

GOOD TO KNOW

Lead time: 2–4 weeks

Certifications: CE

Warranty: Every unit comes with a 1-year warranty and lifetime technical support.

Payment: We accept PayPal at checkout. For alternative payment methods, email us at sales@ufactory.cc.

Trade terms: All orders ship EXW. Import duties, taxes, and customs clearance are the buyer's responsibility.

$3,000.00

Key Features

1

Pick-and-Release Detection

Provides real-time feedback to confirm successful object pickup and release.

2

Simple Digital I/O Control

Enables quick integration and straightforward suction and release control.

3

Low Power Consumption

Operates on a 24 VDC supply with static power consumption of just 0.5 W.

4

Quiet, Lab-Friendly Operation

Maintains a noise level below 60 dB when measured at a distance of 30 cm.

6-Axis F/T Sensor Specification

Parameter	Fx, Fy	Fz	Tx, Ty, Tz
Cobot compatibility	UFACTORY xArm Series, UFACTORY 850
Data rate	200 Hz
	Fx, Fy	Fz	Tx, Ty, Tz
Normal capacity (N.C)	400 N	400 N	20 N·m
Noise-free resolution (typical)	0.4 N	0.4 N	0.01 N·m
Hysteresis	0.5% FS	0.5% FS	0.5% FS
Crosstalk (typical)	≤ 2% FS	≤ 2% FS	≤ 2% FS
Single-axis overload	Fx, Fy	Fz+	Fz-	Tx, Ty, Tz
	150% FS	150% FS	150% FS	150% FS
Weight	600 g (including adapter)
Operating environment	0 to 50 °C, IP40
