Gripper G2

Name: Gripper G2
Brand: store.ufactory.cc
SKU: 3000
Price: 1999.00 USD
Availability: InStock

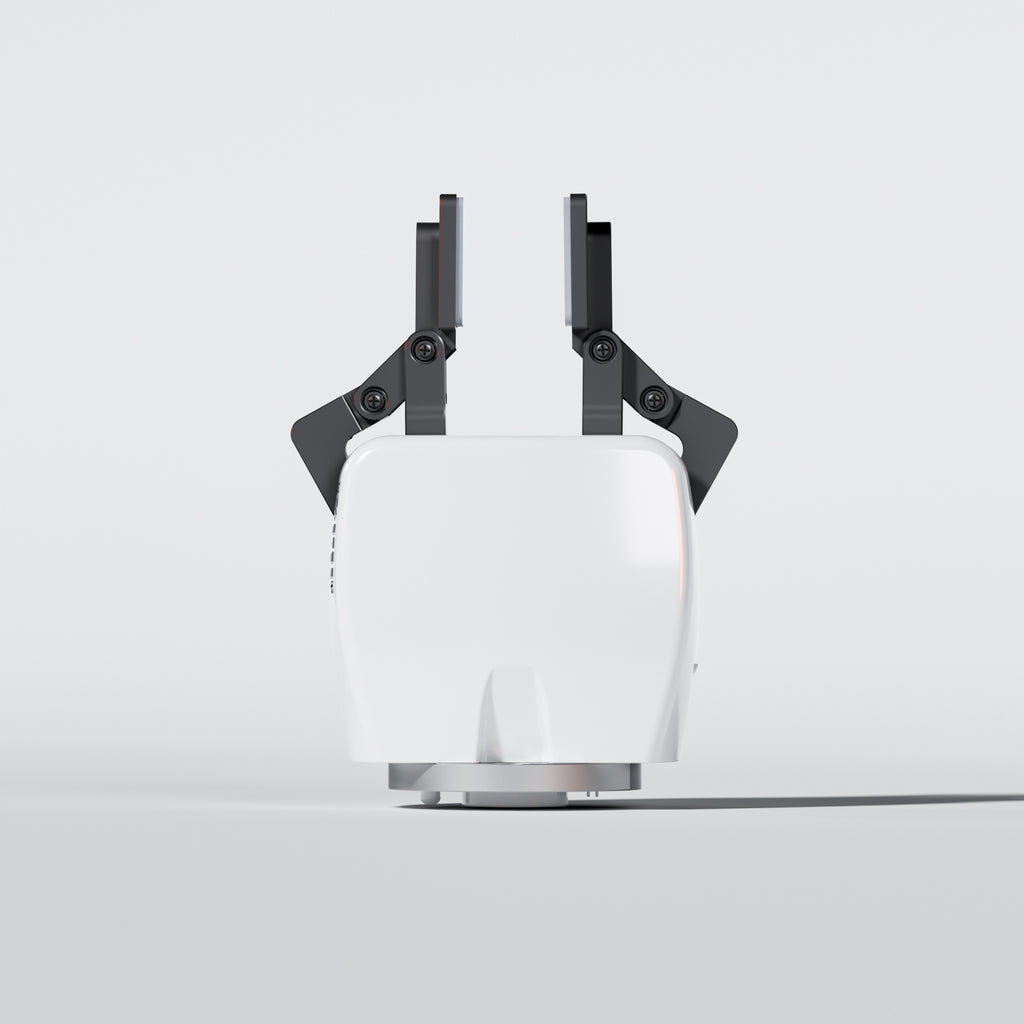

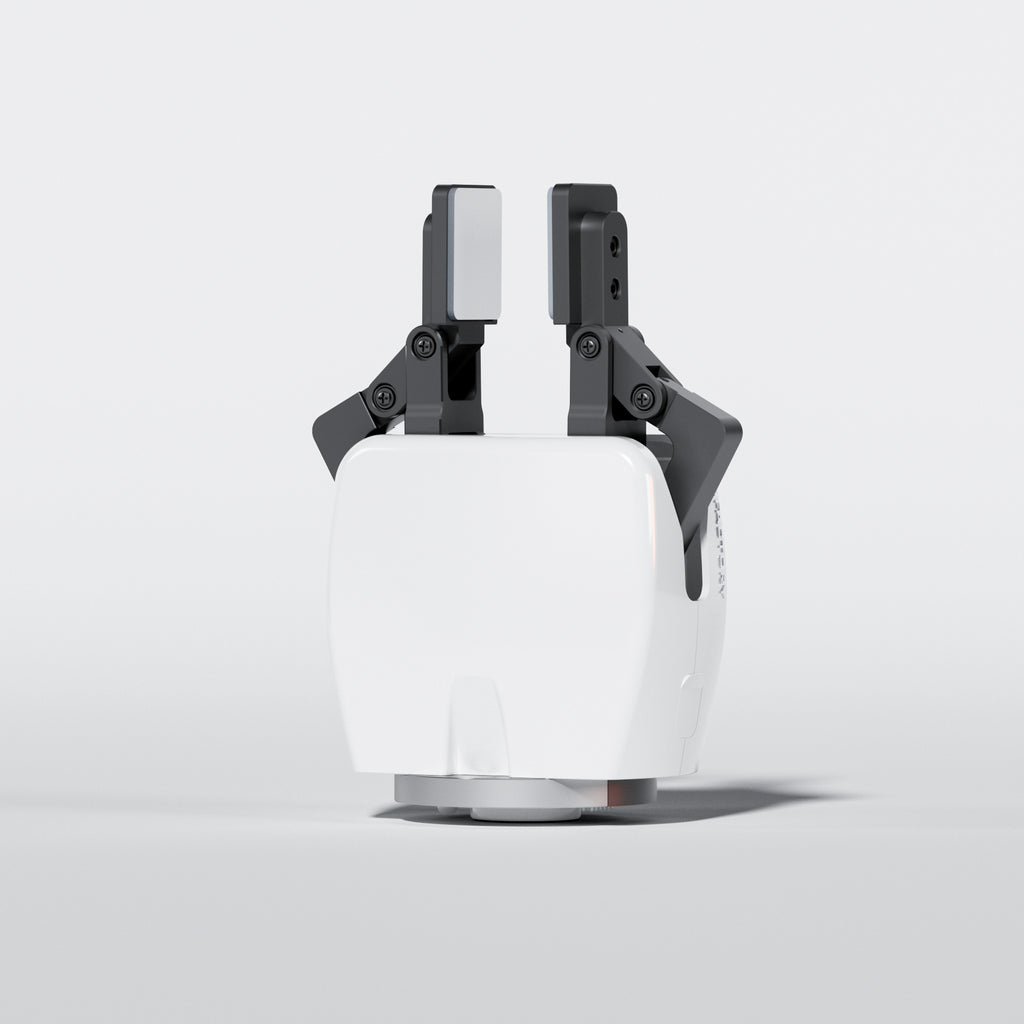

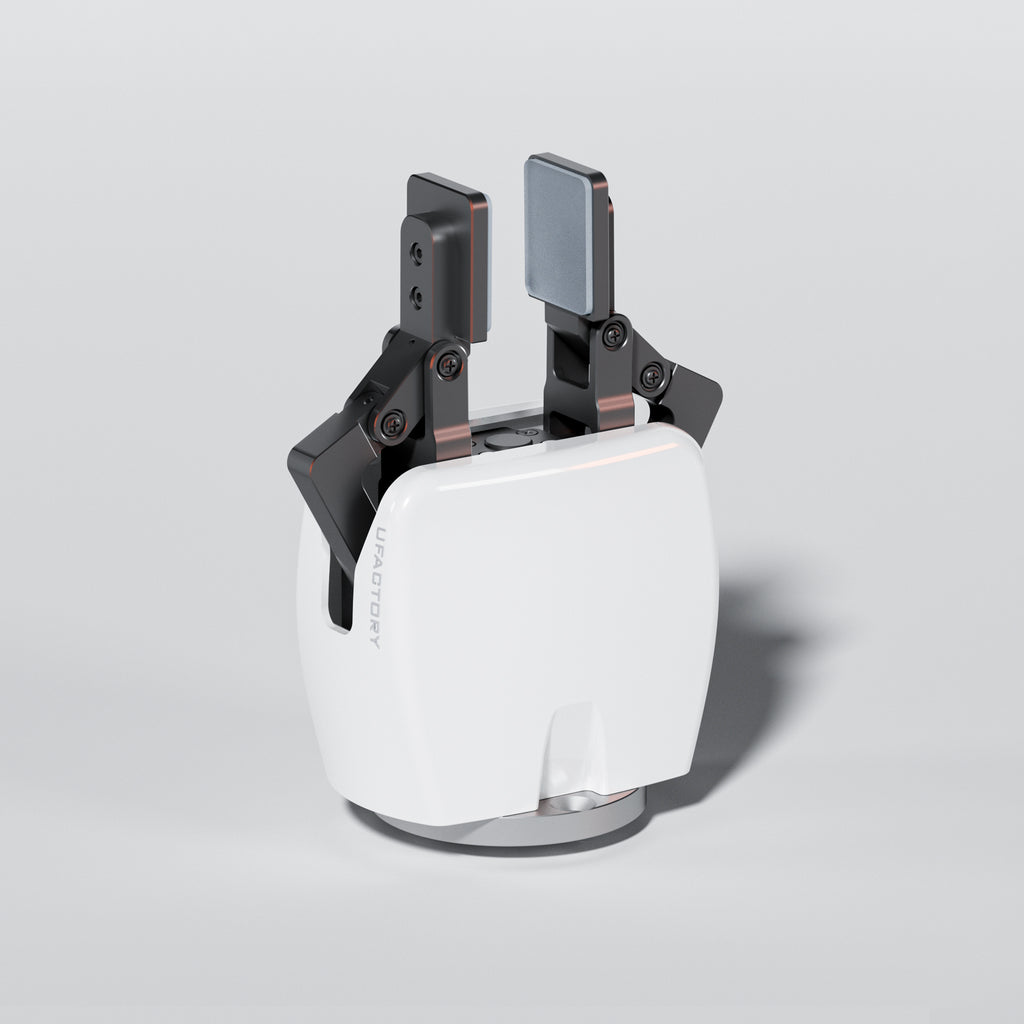

Designed for dependable handling of rigid, consistently shaped objects, this 2-finger parallel gripper is a versatile choice for research, prototyping, and production automation.

Key Specifications

84 ±1 mm

Stroke

5 kg

Max payload

10–50 N

Gripping force

GOOD TO KNOW

Lead time: 2–4 weeks

Certifications: CE

Warranty: Every unit comes with a 1-year warranty and lifetime technical support.

Payment: We accept PayPal at checkout. For alternative payment methods, email us at sales@ufactory.cc.

Trade terms: All orders ship EXW. Import duties, taxes, and customs clearance are the buyer's responsibility.

$1,999.00

Key Features

1

Programmable stroke, speed, and gripping force

Adapt the gripper to a wide range of applications and handling requirements.

2

Customizable fingertips

Accommodate objects of different sizes, shapes, and surface characteristics.

3

Plug-and-produce design

Reduce setup time and simplify changeovers, making it ideal for high-mix, low-volume production.

4

Automatic TCP and payload calculation

Minimize manual configuration and simplify robot programming.

5

Automatic grip and release detection

Improve process reliability and help maintain efficient production.

6

Intuitive GUI-based programming

Configure and control the gripper quickly without complex coding.

UFACTORY 2-Finger Grippers Comparison

Gripper	Gripper G2	BIO Gripper G2	Gripper Lite
Cobot compatibility	xArm Series, 850	xArm Series, 850	Lite 6
Best for	Firm, consistently shaped objects	Flat, delicate items such as 96-well plates	Small, light, consistently shaped objects
Supply voltage	24 VDC, 1.5 A max.	24 VDC, 1.5 A max.	24 VDC, 500 mA max.
Max supply voltage	28 VDC	28 VDC	26 VDC
Static power	1 W	0.72 W	0.5 W
Weight	800 g	790 g (with adapter)	350 g
Payload	≤ 5 kg	≤ 5 kg	≤ 1 kg
Stroke / range	84 ± 1 mm	71–150 mm	16 mm
Finger type	Replaceable	Replaceable	Replaceable
Gripping force	10 to 50 N	20 N	5 N
Communication	RS-485, Modbus RTU	RS-485, Modbus RTU	Digital I/O
Programmable parameters	Speed 15–225 mm/s, position 0–840 mm, force 1–100%	Speed 0–4,000 rpm, position 71–150 mm, force 1–100%	N/A
Status indicator	N/A	Working, power	N/A
Feedback	Position/pick/release	Position/pick/release	N/A
Lifespan	>2,000,000 cycles	>30,000 h	>6,000 h
Operating environment	0 to 50 °C, IP40	0 to 50 °C, IP40	0 to 50 °C, IP40
